Epsylar +

For diagnostic and interventional access to the peripheral vasculature
  • Precise locating and measuring
  • Superior torqueability and support
  • Reduced vasospasm and smooth access
  • Minimized vessel trauma
  • Pairs with wide range of accessories
One device.
More possibilities.
One device.
More possibilities.

Suitable for peripheral interventions, the Epsylar+ Guiding Sheath offers more possibilities as it can be used as an introducer sheath or a guiding catheter. It is designed for the introduction of diagnostic and interventional devices into the vasculature. The Epsylar+ Guiding Sheath supports smooth transition and easy insertion.

  • Platinum-Iridium marker makes precise locating and measuring

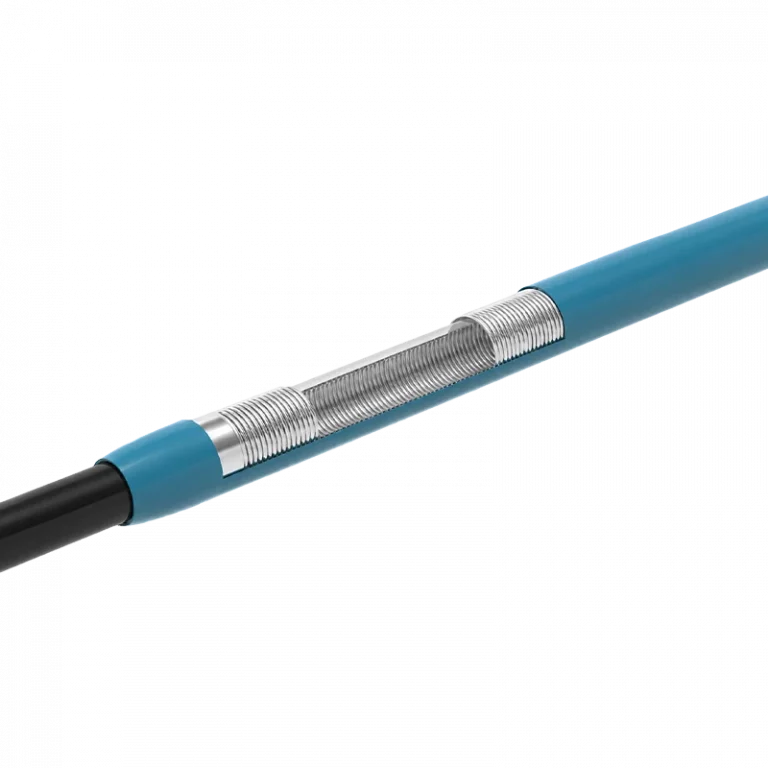

  • Coiled stainless steel provides superior torqueability and support
  • Hydrophilic coating on distal end reduces vasospasm and smoothens access
  • PTFE inner layer allows devices to pass through smoothly
  • Silky transition between sheath and dilator minimizes vessel trauma
  • Atraumatic tip for safe operation

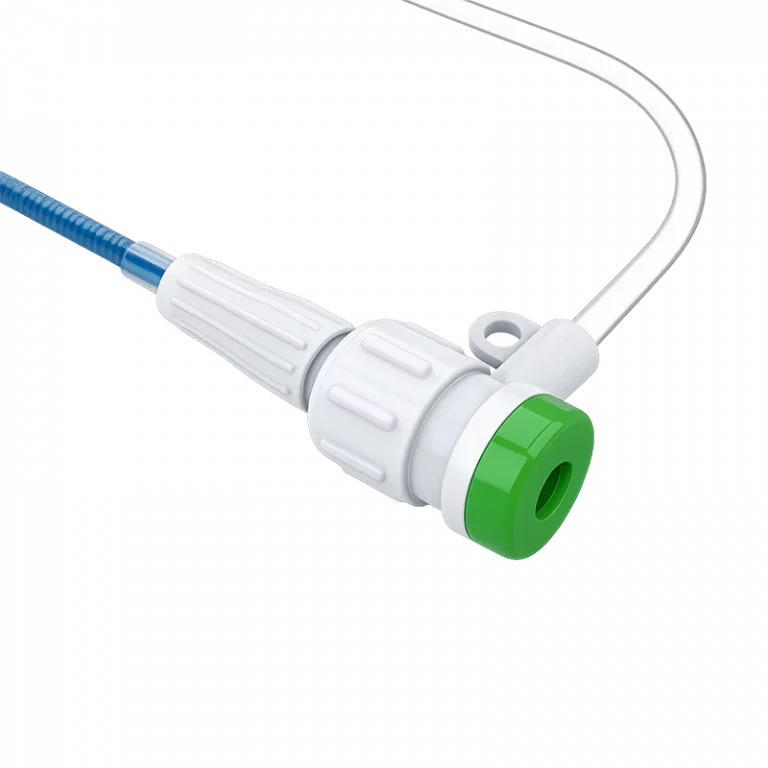

  • The detachable hemostatic valve pairs with a wide range of accessories, giving the physician greater operational flexibility

Manufactured by:

Shanghai INT Medical Instruments Co., Ltd.
No. 925, Jinyuan Yi Road, 201803 | Shanghai, P.R.C.
Tel. +86 21 59140056

Shanghai International Holding Corp. GmbH (Europe)
Eiffestraße 80 | 20537 Hamburg, Germany
Tel: +49 40 2513175

Sheath length (cm)
French size
Tip configuration
4F
5F
6F
7F
8F
40
VSS4F01
VSS5F01
VSS6F01
VSS7F01
VSS8F01
55
VSS4F02
VSS5F02
VSS6F02
VSS7F02
VSS8F02
straight
70
VSS4F03
VSS5F03
VSS6F03
VSS7F03
VSS8F03
90
VSS4F04
VSS5F04
VSS6F04
VSS7F04
VSS8F04
